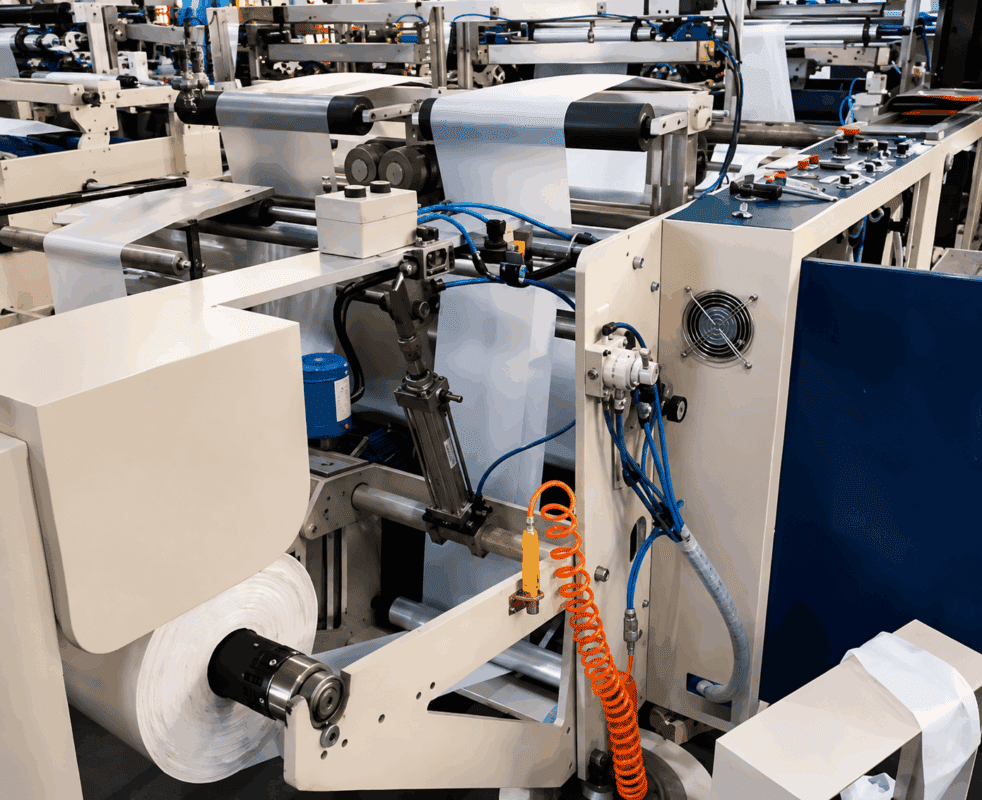

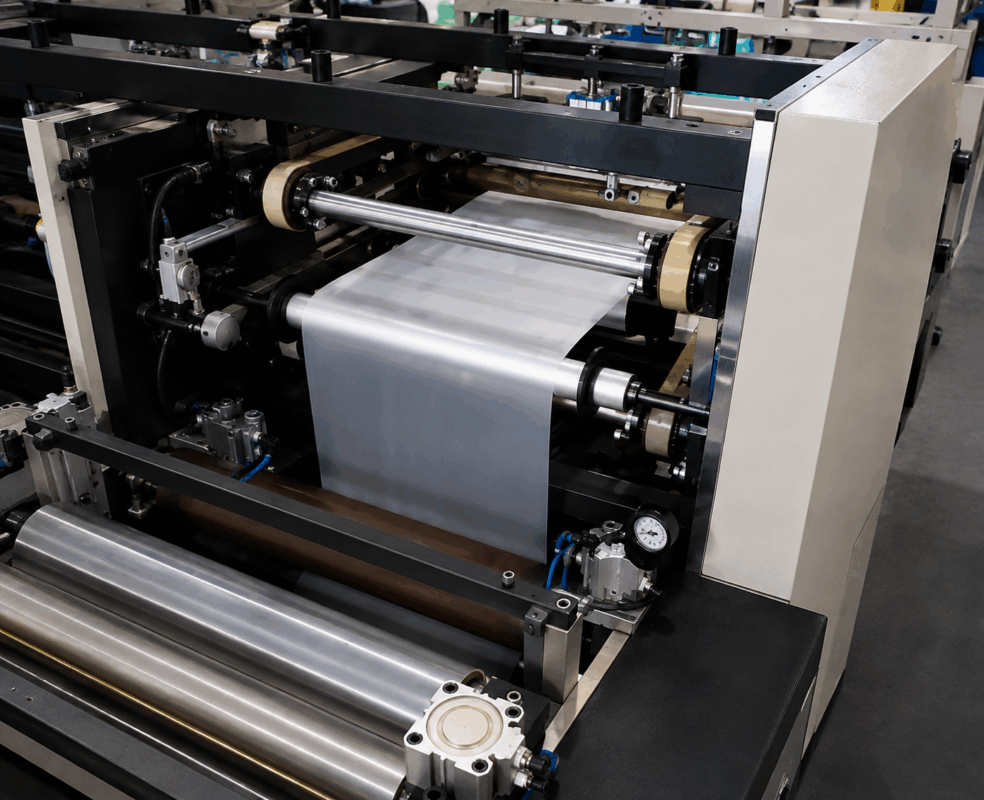

COSMO STBCR-40 Bag-Making Machine: High Productivity and Automated Bag Production

Plastic Expert offers the Taiwan-made COSMO STBCR-40 bag-making machine. The equipment is designed for automatic production of T-shirt bags, as well as bottom-seal bags on a roll on a core.

The model has two working lanes and can produce up to 150 bags per minute on each of them. The total output of the equipment reaches 300 items per minute, which makes the machine an effective solution for enterprises with large production volumes.

Automation and precision

The COSMO STBCR-40 is equipped with two servo motors, which allow precise adjustment of the bag length and the line speed. It is controlled by a PLC controller with a self-diagnostics function.

To monitor the production process, sensors for film end, film break and film jam are provided. If a fault occurs, the equipment stops automatically, which helps prevent material damage, reduce the number of rejects and cut downtime.

Photo-sensor devices ensure accurate handling of film that has already been printed.

Main technical specifications

• Type of film processed — HDPE, LDPE and LLDPE;
• Number of working lanes — 2;
• Minimum roll width — 2 × 180 mm;
• Maximum roll width — 2 × 330 mm;
• Maximum width of the winding device — 2 × 350 mm;
• Length of the bag produced — from 350 mm;
• Maximum diameter of the wound roll — 180 mm;
• Productivity — up to 150 bags per minute on each lane;
• Power consumption — 25 kW;
• Core diameter — 25 to 75 mm;
• Core thickness — from 3 mm;
• Overall dimensions — 5850 × 2400 × 1940 mm;
• Equipment weight — 4800 kg

COSMO STBCR-40 configuration

The machine is equipped with the systems required for stable, automated production:

• a pneumatic roll lifter on the unwinder;
• inverter control of the forced unwinding;
• two sets of the EPC system;
• a film pre-tensioning device in front of the sealing knife;
• a static electricity removal system;
• automatic changing of finished small rolls;
• a programmable bag counter;
• three temperature controllers;
• upper and lower heated sealing tables;
• two photo-sensor devices for working with printed film;
• two pneumatic shafts;
• two servo motors;
• two automatic die-cutting devices for making T-shirt bags.

Advantages of the equipment for your enterprise

Using the two-lane COSMO STBCR-40 makes it possible to produce on two lanes at the same time, increasing productivity without a significant rise in labor costs.

Automation of the main processes helps the enterprise to:

• increase the output of finished products;
• reduce operator involvement in the production process;
• ensure consistent bag length and quality;
• reduce the number of rejects;
• speed up equipment changeover;
• monitor the condition of the film during operation;
• reduce production downtime.

The COSMO STBCR-40 is suited to enterprises engaged in serial production of bags that plan to raise line productivity through automation.

COSMO STBCR-40 Bag-Making Machine in Stock.

Plastic Expert specialists will tell you about the technical condition and configuration of the machine, provide additional information and help assess whether the equipment fits the tasks of your production.
